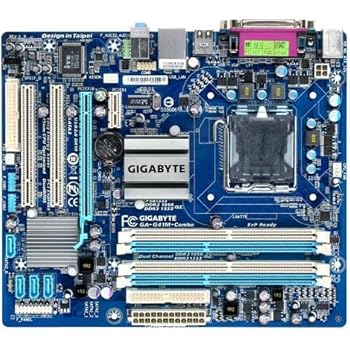

Placa Mae Com Slot Ddr2 E Ddr3

taiquinebe1986.netlify.com › 〓 Placa Mae Com Slot Ddr2 E Ddr3

Placa Mae Com Slot Ddr2 E Ddr3 Rating: 8,6/10 4582 reviews

Placa Mae Com Slot Ddr2 E Ddr3 8gb
Placa Mae Com Slot Ddr2 E Ddr3 Memory

G.SKILL 8GB (2 x 4GB) 240-Pin DDR2 SDRAM DDR2 800 (PC2 6400) Desktop RAM $138.86 4X 2GB micron (8GB) PC2-6400U (DDR2 800) desktop MT16HTF25664AY-800E1 Free Ship.

Two types of DIMMs: a 168-pin SDRAM module (top) and a 184-pin DDR SDRAM module (bottom). The SDRAM module has two notches (rectangular cuts or incisions) on the bottom edge, while the DDR1 SDRAM module has only one. Also, each module has eight RAM chips, but the lower one has an unoccupied space for the ninth chip; this space is occupied in ECC DIMMs

Three SDRAM DIMM slots on a computer motherboard

Door deze inkeping past een DDR3 module simpel weg niet in een DDR2 moederbord. Dit is maar goed ook want met het te hoge voltage van DDR2 kan de module kapot gaan. DDR (2002) 2.5 V, 266 MT/s, 128Mb DDR2 (2004) De opvolger van DDR, 28% zuiniger, 50% sneller en 100% meer capaciteit per chip. 1.8v, 400 MT/s, 256 Mb DDR3 (2007).
DDR3 Memory DDR2 moved the 'notch' to a different location so DDR2 could not be mounted in a DDR slot by accident, and vice versa. DDR3 provides a third notch configuration, designed to prevent.

A DIMM or dual in-line memory module, commonly called a RAM stick, comprises a series of dynamic random-access memoryintegrated circuits. These modules are mounted on a printed circuit board and designed for use in personal computers, workstations and servers. DIMMs began to replace SIMMs (single in-line memory modules) as the predominant type of memory module as IntelP5-based Pentium processors began to gain market share.

While the contacts on SIMMs on both sides are redundant, DIMMs have separate electrical contacts on each side of the module. Another difference is that standard SIMMs have a 32-bit data path, while standard DIMMs have a 64-bit data path. Since Intel's Pentium, many processors have a 64-bit bus width, requiring SIMMs installed in matched pairs in order to populate the data bus. The processor would then access the two SIMMs in parallel. DIMMs were introduced to eliminate this disadvantage.

Variants[edit]

Variants of DIMM slots support DDR, DDR2, DDR3, DDR4 and DDR5 RAM.

Common types of DIMMs include the following:

SDRAM	SDR SDRAM	DDR SDRAM	DDR2 SDRAM	DDR3 SDRAM	DDR4 SDRAM	DDR5 SDRAM	FPM DRAM and EDO DRAM	FB-DIMM DRAM
DIMM	100-pin	168-pin	184-pin	240-pin^[a]		288-pin^[a]		168-pin	240-pin
SO-DIMM	N/A	144-pin	200-pin^[a]		204-pin	260-pin	72-pin/144-pin	N/A
MicroDIMM	N/A	144-pin	172-pin	214-pin	N/A			N/A

70 to 200 pins

72-pin SO-DIMM (not the same as a 72-pin SIMM), used for FPM DRAM and EDO DRAM
100-pin DIMM, used for printer SDRAM
144-pin SO-DIMM, used for SDR SDRAM (less frequently for DDR2 SDRAM)
168-pin DIMM, used for SDR SDRAM (less frequently for FPM/EDO DRAM in workstations/servers, may be 3.3 or 5 V)
172-pin MicroDIMM, used for DDR SDRAM
184-pin DIMM, used for DDR SDRAM
200-pin SO-DIMM, used for DDR SDRAM and DDR2 SDRAM
200-pin DIMM, used for FPM/EDO DRAM in some Sun workstations and servers.

201 to 300 pins

204-pin SO-DIMM, used for DDR3 SDRAM
214-pin MicroDIMM, used for DDR2 SDRAM
240-pin DIMM, used for DDR2 SDRAM, DDR3 SDRAM and FB-DIMM DRAM
244-pin MiniDIMM, used for DDR2 SDRAM
260-pin SO-DIMM, used for DDR4 SDRAM
260-pin SO-DIMM, with different notch position than on DDR4 SO-DIMMs, used for UniDIMMs that can carry either DDR3 or DDR4 SDRAM
278-pin DIMM, used for HP high density SDRAM.
288-pin DIMM, used for DDR4 SDRAM and DDR5 SDRAM^[1]

168-pin SDRAM[edit]

Notch positions on DDR (top) and DDR2 (bottom) DIMM modules

On the bottom edge of 168-pin DIMMs there are two notches, and the location of each notch determines a particular feature of the module. The first notch is the DRAM key position, which represents RFU (reserved future use), registered, and unbuffered DIMM types (left, middle and right position, respectively). The second notch is the voltage key position, which represents 5.0 V, 3.3 V, and RFU DIMM types (order is the same as above).

DDR DIMMs[edit]

8 GB DDR4-2133 ECC 1.2 V RDIMMs

DDR, DDR2, DDR3, DDR4 and DDR5 all have different pin counts and/or different notch positions. As of August, 2014, DDR4 SDRAM is a modern emerging type of dynamic random access memory (DRAM) with a high-bandwidth ('double data rate') interface, and has been in use since 2013. It is the higher-speed successor to DDR, DDR2 and DDR3. DDR4 SDRAM is neither forward nor backward compatible with any earlier type of random access memory (RAM) because of different signalling voltages, timings, as well as other differing factors between the technologies and their implementation.

SPD EEPROM[edit]

A DIMM's capacity and other operational parameters may be identified with serial presence detect (SPD), an additional chip which contains information about the module type and timing for the memory controller to be configured correctly. The SPD EEPROM connects to the System Management Bus and may also contain thermal sensors (TS-on-DIMM).^[2]

Error correction[edit]

ECC DIMMs are those that have extra data bits which can be used by the system memory controller to detect and correct errors. There are numerous ECC schemes, but perhaps the most common is Single Error Correct, Double Error Detect (SECDED) which uses an extra byte per 64-bit word. ECC modules usually carry a multiple of 9 instead of a multiple of 8 chips.

Ranking[edit]

Sometimes memory modules are designed with two or more independent sets of DRAM chips connected to the same address and data buses; each such set is called a rank. Ranks that share the same slot, only one rank may be accessed at any given time; it is specified by activating the corresponding rank's chip select (CS) signal. The other ranks on the module are deactivated for the duration of the operation by having their corresponding CS signals deactivated. DIMMs are currently being commonly manufactured with up to four ranks per module. Consumer DIMM vendors have recently begun to distinguish between single and dual ranked DIMMs.

After a memory word is fetched, the memory is typically inaccessible for an extended period of time while the sense amplifiers are charged for access of the next cell. By interleaving the memory (e.g. cells 0, 4, 8, etc. are stored together in one rank), sequential memory accesses can be performed more rapidly because sense amplifiers have 3 cycles of idle time for recharging, between accesses.

DIMMs are often referred to as 'single-sided' or 'double-sided' to describe whether the DRAM chips are located on one or both sides of the module's printed circuit board (PCB). However, these terms may cause confusion, as the physical layout of the chips does not necessarily relate to how they are logically organized or accessed.

JEDEC decided that the terms 'dual-sided', 'double-sided', or 'dual-banked' were not correct when applied to registered DIMMs (RDIMMs).

Organization[edit]

Most DIMMs are built using '×4' ('by four') or '×8' ('by eight') memory chips with nine chips per side; '×4' and '×8' refer to the data width of the DRAM chips in bits.

In the case of '×4' registered DIMMs, the data width per side is 36 bits; therefore, the memory controller (which requires 72 bits) needs to address both sides at the same time to read or write the data it needs. In this case, the two-sided module is single-ranked. For '×8' registered DIMMs, each side is 72 bits wide, so the memory controller only addresses one side at a time (the two-sided module is dual-ranked).

The above example applies to ECC memory that stores 72 bits instead of the more common 64. There would also be one extra chip per group of eight, which is not counted.

Speeds[edit]

For various technologies, there are certain bus and device clock frequencies that are standardized; there is also a decided nomenclature for each of these speeds for each type.

DIMMs based on Single Data Rate (SDR) DRAM have the same bus frequency for data, address and control lines. DIMMs based on Double Data Rate (DDR) DRAM have data but not the strobe at double the rate of the clock; this is achieved by clocking on both the rising and falling edge of the data strobes. Power consumption and voltage gradually became lower with each generation of DDR-based DIMMs.

Another influence is Column Access Strobe (CAS) latency, or CL which affects memory access speed. This is the delay time between the READ command and the moment data is available. See main article CAS/CL

SDR SDRAM DIMMs
Chip	Module	Effective Clock	Transfer rate	Voltage
SDR-66	PC-66	66 MHz	66 MT/s	3.3 V
SDR-100	PC-100	100 MHz	100 MT/s	3.3 V
SDR-133	PC-133	133 MHz	133 MT/s	3.3 V

DDR SDRAM (DDR1) DIMMs
Chip	Module	Memory Clock	I/O Bus Clock	Transfer rate	Voltage
DDR-200	PC-1600	100 MHz	100 MHz	200 MT/s	2.5 V
DDR-266	PC-2100	133 MHz	133 MHz	266 MT/s	2.5 V
DDR-333	PC-2700	166 MHz	166 MHz	333 MT/s	2.5 V
DDR-400	PC-3200	200 MHz	200 MHz	400 MT/s	2.5 V

DDR2 SDRAM DIMMs
Chip	Module	Memory Clock	I/O Bus Clock	Transfer rate	Voltage
DDR2-400	PC2-3200	200 MHz	200 MHz	400 MT/s	1.8 V
DDR2-533	PC2-4200	266 MHz	266 MHz	533 MT/s	1.8 V
DDR2-667	PC2-5300	333 MHz	333 MHz	667 MT/s	1.8 V
DDR2-800	PC2-6400	400 MHz	400 MHz	800 MT/s	1.8 V
DDR2-1066	PC2-8500	533 MHz	533 MHz	1066 MT/s	1.8 V

DDR3 SDRAM DIMMs
Chip	Module	Memory Clock	I/O Bus Clock	Transfer rate	Voltage
DDR3-800	PC3-6400	400 MHz	400 MHz	800 MT/s	1.5 V
DDR3-1066	PC3-8500	533 MHz	533 MHz	1066 MT/s	1.5 V
DDR3-1333	PC3-10600	667 MHz	667 MHz	1333 MT/s	1.5 V
DDR3-1600	PC3-12800	800 MHz	800 MHz	1600 MT/s	1.5 V
DDR3-1866	PC3-14900	933 MHz	933 MHz	1866 MT/s	1.5 V
DDR3-2133	PC3-17000	1066 MHz	1066 MHz	2133 MT/s	1.5 V
DDR3-2400	PC3-19200	1200 MHz	1200 MHz	2400 MT/s	1.5 V

DDR4 SDRAM DIMMs
Chip	Module	Memory Clock	I/O Bus Clock	Transfer rate	Voltage
DDR4-1600	PC4-12800	800 MHz	800 MHz	1600 MT/s	1.2 V
DDR4-1866	PC4-14900	933 MHz	933 MHz	1866 MT/s	1.2 V
DDR4-2133	PC4-17000	1066 MHz	1066 MHz	2133 MT/s	1.2 V
DDR4-2400	PC4-19200	1200 MHz	1200 MHz	2400 MT/s	1.2 V
DDR4-2666	PC4-21300	1333 MHz	1333 MHz	2666 MT/s	1.2 V
DDR4-3200	PC4-25600	1600 MHz	1600 MHz	3200 MT/s	1.2 V

Form factors[edit]

Several form factors are commonly used in DIMMs. Single Data Rate Synchronous DRAM (SDR SDRAM) DIMMs were primarily manufactured in 1.5 inches (38 mm) and 1.7 inches (43 mm) heights. When 1U rackmount servers started becoming popular, these form factor registered DIMMs had to plug into angled DIMM sockets to fit in the 1.75 inches (44 mm) high box. To alleviate this issue, the next standards of DDR DIMMs were created with a 'low profile' (LP) height of around 1.2 inches (30 mm). These fit into vertical DIMM sockets for a 1U platform.

With the advent of blade servers, angled slots have once again become common in order to accommodate LP form factor DIMMs in these space-constrained boxes. This led to the development of the Very Low Profile (VLP) form factor DIMM with a height of around 0.72 inches (18 mm). The DDR3 JEDEC standard for VLP DIMM height is around 0.740 inches (18.8 mm). These will fit vertically in ATCA systems.

Full-height 240-pin DDR2 and DDR3 DIMMs are all specified at a height of around 1.18 inches (30 mm) by standards set by JEDEC. These form factors include 240-pin DIMM, SODIMM, Mini-DIMM and Micro-DIMM.^[3]
